FA24D High-Capacity 3D-Print Oil Pan for 2022+ Toyota GR86 / Subaru BRZ - JDL FT86 4-2-1 EL (2022+)

Product description

The Formula Delta Performance Solutions (FDPS) additively manufactured high-capacity baffled oil pan for the 2022+ Toyota GR86 (ZN8) / Subaru BRZ (ZD8) provides an additional 2.1 L (2.2 US qt) of oil capacity over the factory oil pan.

Designed for competition track use, the oil pan incorporates an integrated, maintenance-free baffle system to help mitigate oil starvation and oil pressure loss during sustained lateral acceleration.

Header compatibility

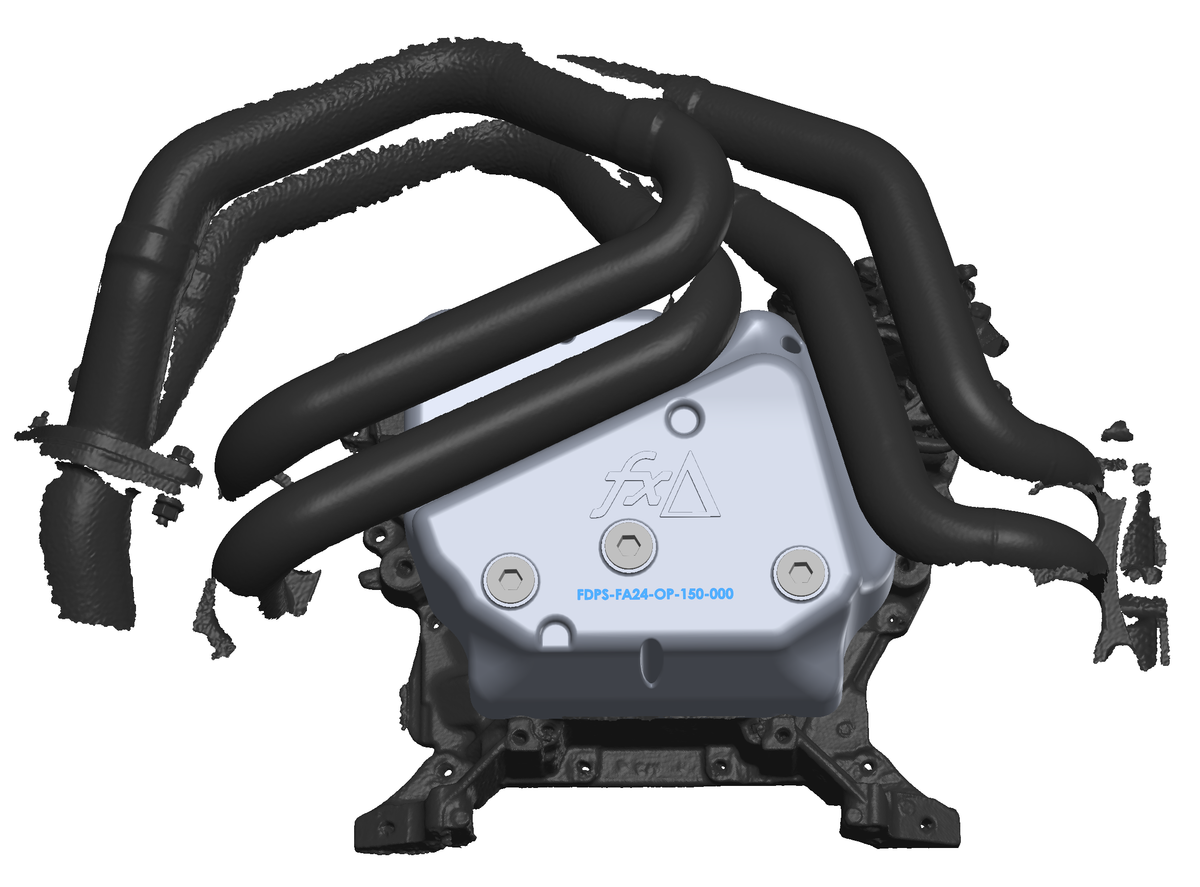

This configuration is designed specifically for the JDL FT86 4-2-1 Equal Length Header, with its geometry designed to maximize oil capacity around this exhaust header.

Unlike our standard fitment, this configuration prioritizes additional oil capacity over broader header compatibility. This is a dedicated fitment designed exclusively for this exhaust header and is not compatible with factory or other aftermarket headers.

This product is custom made-to-order and has a lead time of 4 to 6 weeks depending on stock.

Installation instructions

We recommend professional installation of Formula Delta Performance Solutions products. Be aware of all the necessary precautions, tools and consumables when installing the high capacity oil pan.

Installation instructions are the same as FA24 High Capacity Baffled Oil Pan for 2022+ Toyota GR86 / Subaru BRZ (2nd Gen). Please see the following installation addendum for specific instructions related to this product.

Always visit our webpage for the latest installation instructions.

Pricing

This product has a total cost of $1,149 USD + shipping + duties prepaid (USA).

Specifications & Features

• Printed in China and final assembly in Canada
• Oil pan capacity significantly increased over OEM oil pan
• Integrated baffle system
  • Vertical and horizontal baffles
  • Maintenance-free metal trap doors
• Additional features

  • Center drain plug placed directly under the oil pickup tube for RTV inspection and cleaning during oil changes
  • Included spacer to reduce the oil pickup tube vertical gap and reduce dead space inside the oil pan
  • Drillable external oil return points depending on variant selection, up to 20mm (3/4") threads
  • Integrated pry points for easy removal of the oil pan
• Temperature rating of -25 degC to 140 degC

What is included?

• 1x Formula Delta Performance Solutions additively manufactured high capacity oil pan for 2022+ Toyota GR86 / Subaru BRZ (2nd Gen)
  • Includes pre-installed baffle system
  • Includes 3x drain bolts and sealing washers
• 11x M6 bolts hardware kit
• 3x M6x8 bolts hardware kit
• 1x Oversized washer
• 2x Installation magnets

Installation tools and consumables are not included with the oil pan. Please see the installation notes for more details.

Installation notes

• Requires the following tools to install:
  • Required: extended 5mm ball nose hex socket (hex length 4.75" or longer)
  • Required: Loctite 243
• The exhaust header must be removed to install the oil pan.
• Apply RTV to the upper oil pan and spread evenly on the mating surface.
• Inspect and clean the mesh strainer in the oil pickup before installing the oil pan.
• We recommend using aluminum crush or sealing washers only with the drain bolts.
• The baffles system is not designed to be disassembled without proper service. Disassembly without proper service will limit our ability to provide warranty support.

Application notes

• This product is recommended for vehicles with high levels of modification whose primary purpose is for competition track and would benefit from the higher capacity offered by this product, and/or for vehicles who have specific fitment requirements with certain exhaust headers.
• All application notes from our standard cast product apply.
• The high capacity oil pan mitigates oil starvation and oil pressure loss; however, it is not guaranteed to prevent all oil starvation completely, such as in continuous right hand turn operation.
• Formula Delta Performance Solutions make no guarantees, express or implied, regarding the performance, durability, or suitability of this oil pan. Additionally, we do not warrant compatibility with, or acceptance by, any third-party warranties, insurance policies, or service agreements. Use at your own discretion and risk.
