FA24 Additive Manufactured High Capacity Baffled Oil Pan for 2022+ Toyota GR86 / Subaru BRZ (2nd Gen)

Product description

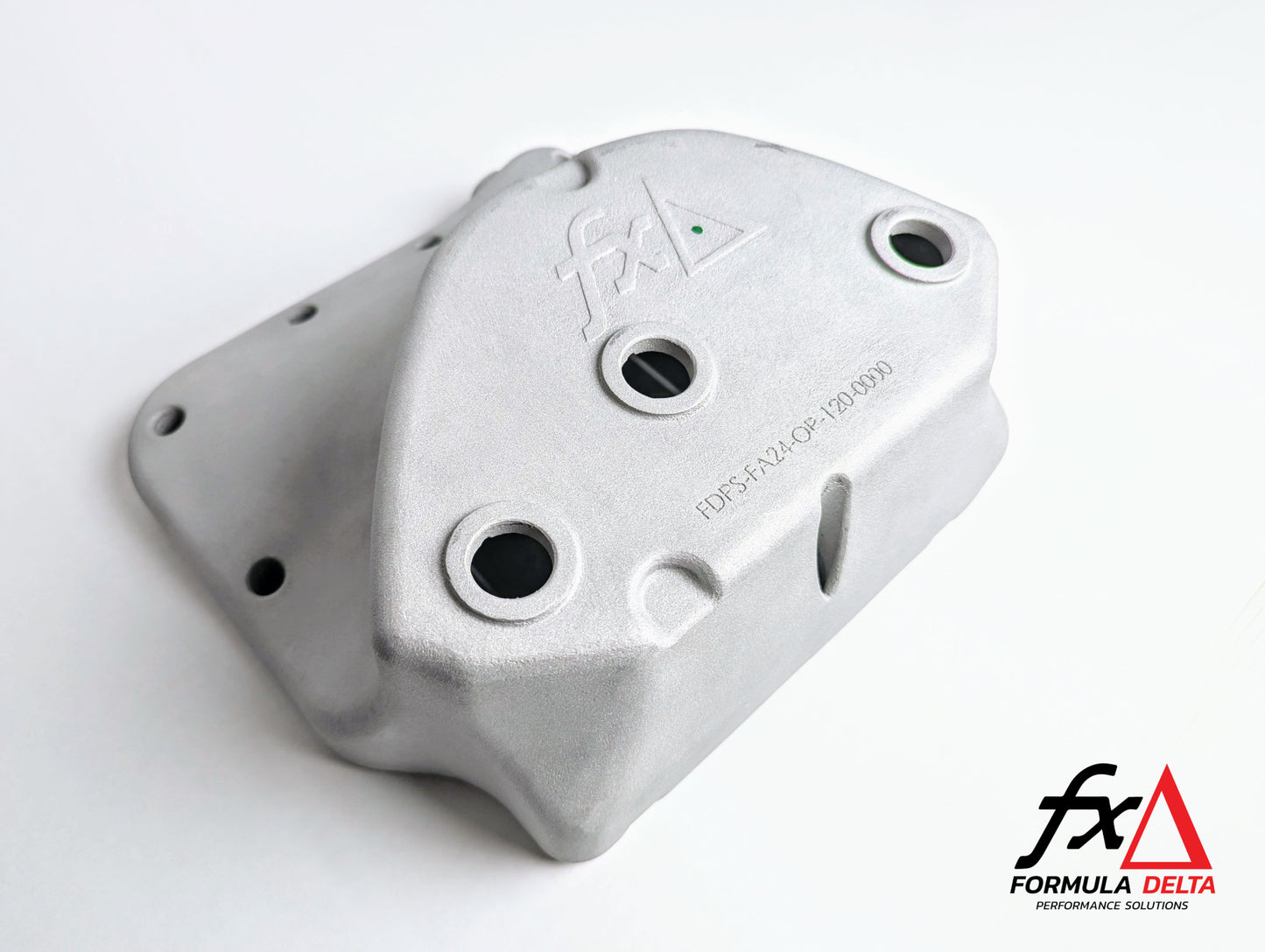

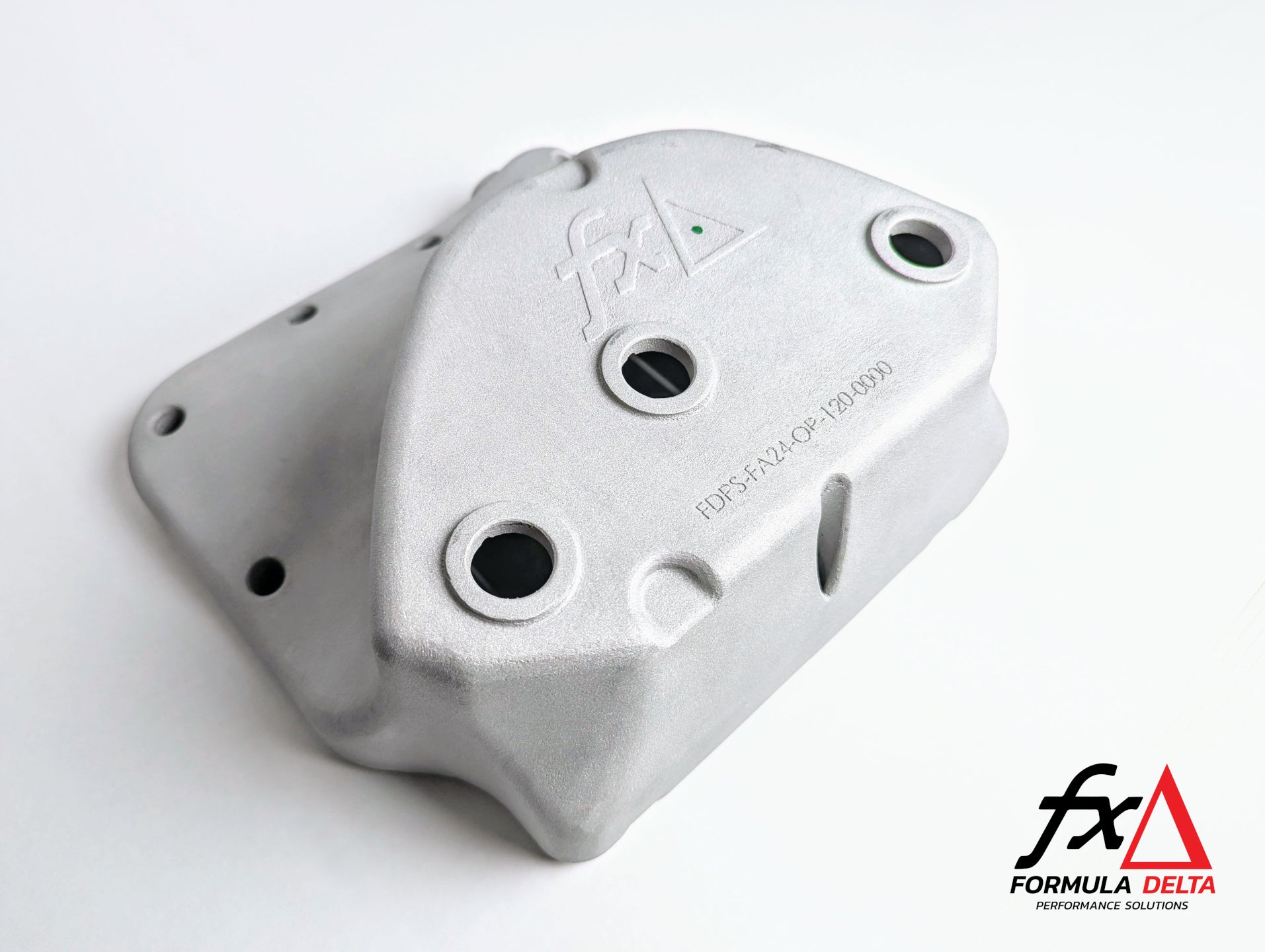

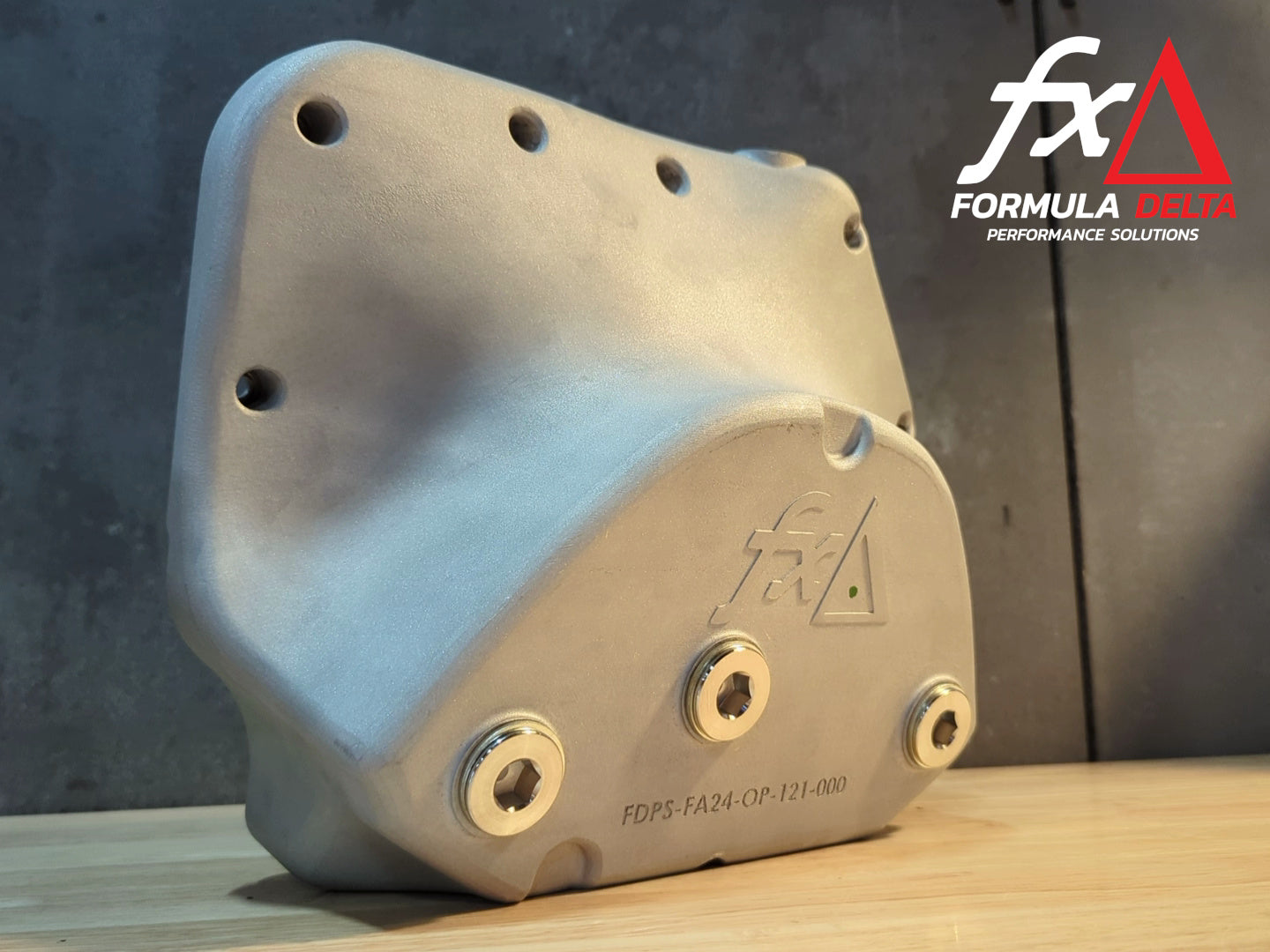

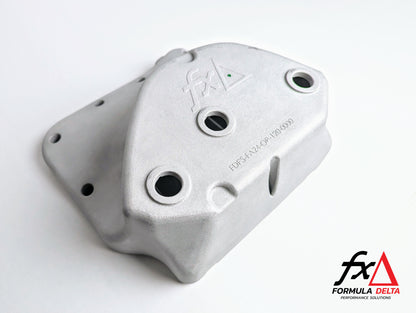

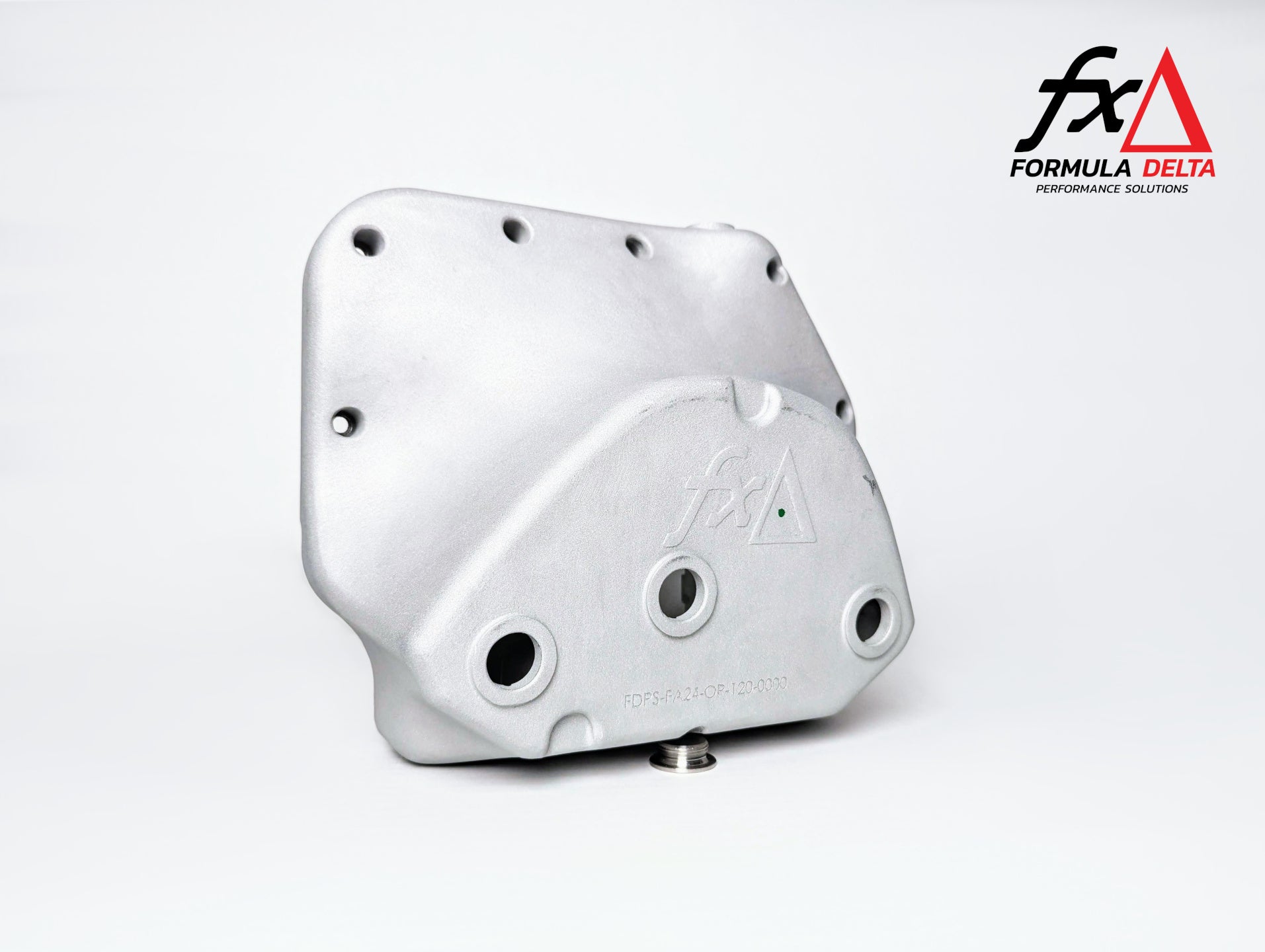

The Formula Delta Performance Solutions (FDPS) custom additively manufactured high capacity oil pan for 2022+ Toyota GR86 (ZN8) / Subaru BRZ (ZD8) provides up to an additional 1.6 L (1.7 US qt) of oil capacity, and includes an integrated, maintenance-free baffle system to reduce the likelihood of oil starvation during competition track usage.

Custom made products are produced in small quantity and can have longer lead times than our standard products.

Variants

This product comes in two variants

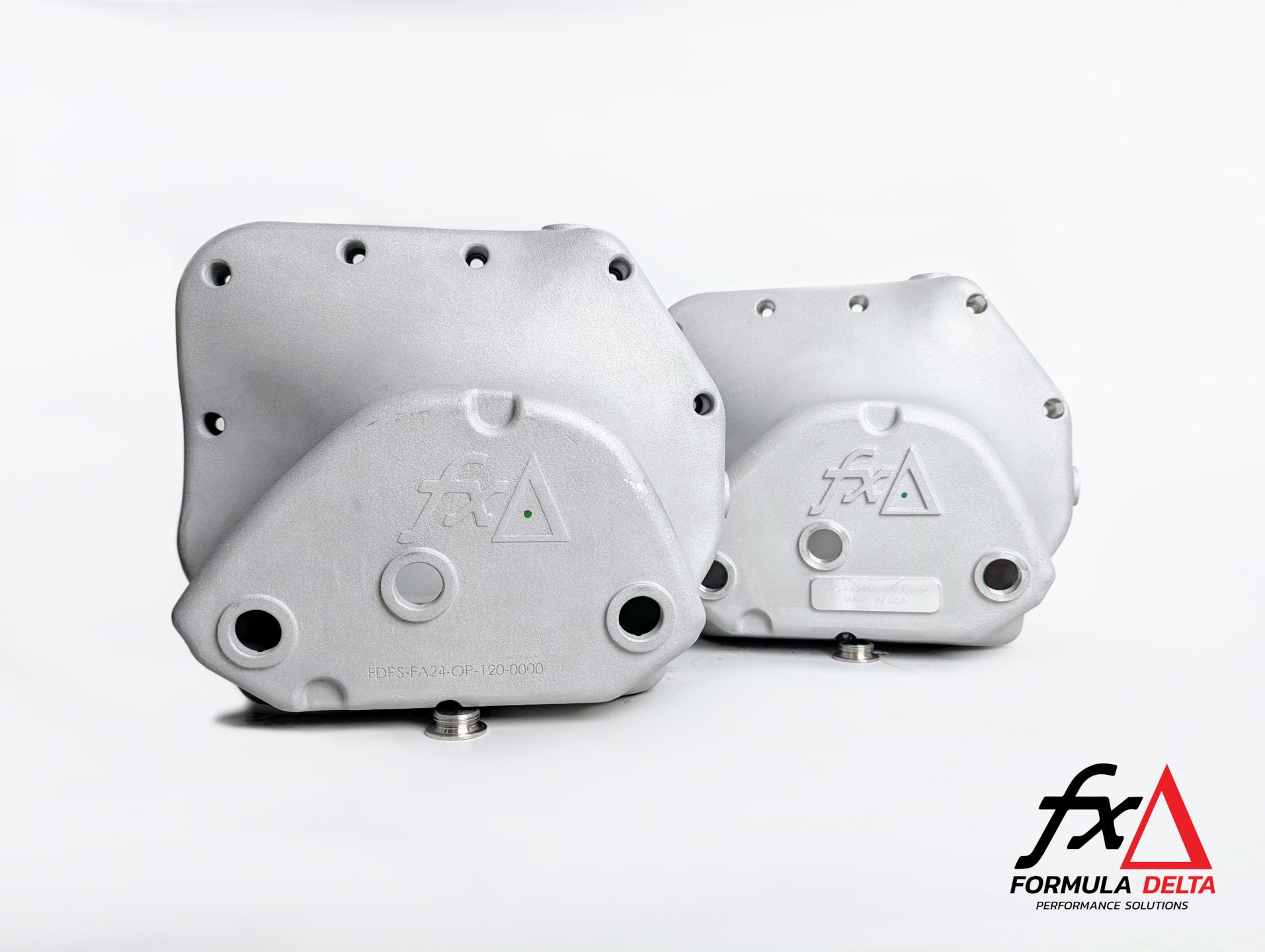

• Standard fitment - this variant comes in the same shape as our cast version and provides an additional 1.6 L (1.7 US qt) of oil capacity over the factory oil pan. This variant will fit factory headers without removing the heat shield. Please refer to the product page for the cast version for known compatibilities.
• HKS Super Manifold GT Spec fitment - this variant has been modified to fit the HKS Super Manifold with Metal Catalyzer GT Spec (PN: HKS33005-AT010) in addition to the factory headers without removing the heat shield. It provides an additional 1.55 L (1.6 US qt) of oil capacity.

Installation instructions

We recommend professional installation of Formula Delta Performance Solutions products. Be aware of all the necessary precautions, tools and consumables when installing the high capacity oil pan.

Installation instructions are the same as FA24 High Capacity Baffled Oil Pan for 2022+ Toyota GR86 / Subaru BRZ (2nd Gen). Please see the following installation addendum for specific instructions related to this product.

Always visit our webpage for the latest installation instructions.

Pricing

This product has a total cost of $1,199 USD + shipping for the Canadian and International markets. This is inclusive of the product cost and the custom assembly service.

Specifications & Features

• Printed in China and final assembly in Canada
• Oil pan capacity of up to 3.9 L (3.9 US qt), an increase of 1.6 L (1.7 US qt), an increase of up to 70% over the OEM lower pan
• Integrated baffle system
  • Vertical and horizontal baffles
  • Maintenance-free metal trap doors
• Additional features

  • Center drain plug placed directly under the oil pickup tube for RTV inspection and cleaning during oil changes
  • Included spacer to reduce the oil pickup tube vertical gap and reduce dead space inside the oil pan
  • Two drillable external oil return points located on the front and side, up to 20mm (3/4") threads
  • Integrated pry points for easy removal of the oil pan
• Temperature rating of -25 degC to 140 degC

What is included?

• 1x Formula Delta Performance Solutions additively manufactured high capacity oil pan for 2022+ Toyota GR86 / Subaru BRZ (2nd Gen)
  • Includes pre-installed baffle system
  • Includes 3x drain bolts and sealing washers
• 11x M6 bolts hardware kit
• 3x M6x8 bolts hardware kit
• 1x Oversized washer
• 2x Installation magnets

Installation tools and consumables are not included with the oil pan. Please see the installation notes for more details.

Installation notes

• Requires the following tools to install:
  • Required: extended 5mm ball nose hex socket (hex length 4.75" or longer)
  • Required: Loctite 243
• The exhaust header must be removed to install the oil pan.
• Apply RTV to the upper oil pan and spread evenly on the mating surface.
• Inspect and clean the mesh strainer in the oil pickup before installing the oil pan.
• We recommend using aluminum crush or sealing washers only with the drain bolts.
• The baffles system is not designed to be disassembled without proper service. Disassembly without proper service will limit our ability to provide warranty support.

Application notes

• This product is recommended for vehicles with high levels of modification whose primary purpose is for competition track and would benefit from the higher capacity offered by this product, and/or for vehicles who have specific fitment requirements with certain exhaust headers.
• All application notes from our standard cast product apply.
• The high capacity oil pan mitigates oil starvation and oil pressure loss; however, it is not guaranteed to prevent all oil starvation completely, such as in continuous right hand turn operation.
• Formula Delta Performance Solutions make no guarantees, express or implied, regarding the performance, durability, or suitability of this oil pan. Additionally, we do not warrant compatibility with, or acceptance by, any third-party warranties, insurance policies, or service agreements. Use at your own discretion and risk.

Acknowledgements

• Stephen Ellis, early access
  • 2024 Toyota GR86
